Simplicial Complex in Two Dimensions

We dsecribe the data structure of the simplicial complex associated to a two dimensional trianglulation give by node,elem . The node records the coordinates of vertices and elem is the pointer from local to global incices of vertices. See Basic mesh data structure.

A brief summary of ordering and orientation

Local edge is the induced orientation [2 3; 3 1; 1 2]. elem2edgeSign(1:NT,1:4) records the elementwise inconsistency of local edge orientation and global edge orientation. It can be obtained from dofedge. This is used to correct the consistency of the local basis with the global basis.

Both elem and local edges are ascend ordering. Then elem2edgeSign = [1 -1 1] records the inconsistency of the edge orientation and the induced orientation. This is used to construct differential operators.

Function to call

[elem2edge,edge,elem2edgeSign,edgeSign] = dofedge(elem);

Functions to read on the usage

PoissonRT0;

Contents

The basic data structure of a mesh consists of node and elem:

node = [0,0; 1,0; 1,1; 0,1];    % nodes
elem = [2,3,1; 4,1,3];          % elements

In iFEM, N, NE, NT represents the muber of vertice, edges, triangles respectively.

N = size(node,1); NT = size(elem,1); % NE = size(edge,1);

The corresponding simplicial complex consists of vertices, edges and triangles. We shall discuss the following three issues:

The indexing and ordering are related and the ordering and orientation are mixed together. However the indexing has nothing to do with the orientation. The indexing and ordering are the combinarotry structure, i.e. only elem is needed, while the orientation also depends on node, the geometry emembdding of vertices.

For indexing, ordering and orientation, there are always local and global version. The relation between the local and global version is the most complicated issue.

Indexing of Simplexes

The indexing refers to the numbering of simplexes, e.g., which edge is numbered as the first one. There are two types of the indexing: local and global. Each simplex in the simplicial complex has a unique index which is called the global index. In one triangle, the three vertices and three edges have their local index from 1:3.

In the assembling procedure of finite element methods, an element-wise matrix using local indexing is first computed and then assembled to get a big matrix using global indexing. Thus the pointer from the local indexing to the global indexing is indispensible. For bases independent of the ordering and orientation, e.g., P1 and P2 elements, the pointer is sufficient, otherwise, the inconsistency of local ordering/orientation and global ordering/orientation should be taken into account.

Indexing pointers of vertices

The NT by 3 matrix elem is indeed the pointer from the local to the global indices of vertices of triangles. For example elem(t,1)=25 means the first vertex of the triangle t is the 25-th vertex.

Similiary, the NE by 2 matrix edge records the pointer from the local to the global indices of vertices of edges.

Local indexing of edges

The triangle constists of three vertices indexed as [1,2,3]. Each triangle contains three edges. There are two indexing schemes for edges.

In locEdge, the i-th edge is opposite to the i-th verices and thus called opposite indexing.

In locEdgel, the indexing is induced from the lexicographic ordering of the three edges.

For 2-D triangulations, we shall always chose opposite indexing. The lexicographic indexing is mainly used in the construction of face2edge of 3-D triangulations; see Simplicial Complex in Three Dimensions. Note that the ordering of vertices of each edge will not change the indexing. For example, locEdge = [2,3; 1,3; 1,2] use the same opposite indexing but different ordering. Chosing [1 3] or [3 1] for the second edge will depend on the consideration of orientation and ordering.

Global indexing of edges

One can easily collect all edges elementwise. The issue is the duplication. For example, each interior edge will be counted twice. The unique funciton is applied such that each edge has a unique global index.

totalEdge = uint32([elem(:,[2,3]); elem(:,[3,1]); elem(:,[1,2])]);
sortedTotalEdge = sort(totalEdge,2);
[edge,tempvar,je] = unique(sortedTotalEdge,'rows');
NE = size(edge,1);

Edge pointer

elem2edge(1:NT,1:3) records the pointer from the local index to the global index of edges. For example, elem2edge(t,1) = 10 means the first edge of triangle t (which is formed by [2 3] vertices of t) is the 10-th one in the edge array.

Such information is stored in the third output of unique function.

elem2edge = uint32(reshape(je,NT,3));

Note that the pointer elem2edge depends on the local indexing of edges used in the generation of totalEdge. Here the opposite indexing of three local edges is used.

Ordering of Vertices

We discuss the ordering of vertices of simplexes. Again there are local ordering and global ordering. They may not be consistent and a sign array is used to record the inconsistency if any.

The local ordering refers to the ordering of local veritces of a simplex. The local ordering could be used in the formulation of the local basis and thus the ordering does matter.

The global ordering refers to the ordering of the global index of vertices of a simplex.

elem. The local ordering is always [1,2,3]. Any permutation of three veritces of a triangle still represents the same triangle. Such freedom provide a room to record more information like:

Two types of ordering of elem is of particular importance

In the positive ordering, the three vertices are ordered such that the signed area, det(v12,v13), is positive. If elem is not positive ordered, elem = fixorder(node,elem) will compute the signed area by simplexvolume(node,elem) and switch the vertices for triangles with negative areas.

For 2-D triangulations, three vertices of a triangle in 2-D is sorted counter-cloclwise and the first vertex is chosen as the newest vertex. Such ordering enables the efficient implementation of local refinement and coarsening in 2-D; see Bisection in Two Dimensions and Coarsening in Two Dimensions. Such ordering scheme is the default choice and used in most places.

In ascend ordering, the vertices of elem is sorted such that elem(t,1)<elem(t,2)<elem(t,3). This can be easily achieved by elem = sort(elem,2). Howevery, one has to rotate the boundary flag accordingly using sortelem.

bdFlag = setboundary(node,elem,'Dirichlet');
display('Before rotation'); display(elem); display(bdFlag);

[elem,bdFlag] = sortelem(elem,bdFlag);
display('After rotation'); display(elem); display(bdFlag);

Before rotation

elem =

     2     3     1
     4     1     3


bdFlag =

    0    1    1
    0    1    1

After rotation

elem =

     1     2     3
     1     3     4


bdFlag =

    1    0    1
    1    1    0

Ascend ordering will benefit the construction of local bases for high order basis or basis with orientation.

We may switch the default positive ordering of elem to ascend ordering when generating data structure for finite element basis. However such sorting is always hidden in the subroutines when a finite element basis requiring ordering is generated; see PoissonRT0 and PoissonBDM1.

edge. The global ordering of edges is always ascended, i.e.

edge(:,1) < edge(:,2);

Indeed in the generation of edge, the totalEdge is sorted to the ascend ordering such that unique can be applied.

Recall that we always use the opposite indexing of edges. We could use ascend ordering , i.e.

locEdge = [2 3; 1 3; 1 2]; % Ascend ordering of local edges

or the consistent (orientation) ordering

locEdge = [2 3; 3 1; 1 2]; % Consistent ordering of local edges

It is consistent since the local ordering orientation of edges is consistent with the induced orientation of the three edges; see the discussion on the orientation.

There might be an inconsistency between the local and global ordering (even for the consistent orientation ordering). That is edge(elem2edge(t,1),1) may not be smaller than edge(elem2edge(t,1),2). It will be more clear from the discussion of the corresponding orientation.

Orientation of Simplexes

The orientation of a triangle is either positive or negative, the orientation of an edge is given by a tangential or normal vector. A normal vector is obtained by rotate a given tangential vector by 90 degree clockwise. For example, when edges are given counter clockwise orientation, the corresponding normal vector is the outwards normal vector.

The orientation of a d-simplex will induce an orientation of its d-1 subcomplex and is called induced orientation. For example, a positive orientated triangle will induce the counter clockwise orientation of its three edges.

The ordering of vertices will naturally introduce an orientation and will be called ordering orientation. More specifically

The orientation of a simplex in the simplicial complex should be uniquely determined which will be called global orientation. It can be chosen as the global ordering orientation but not always the case.

Inside one triangle, the local orientation of three edges is more involved. The local ordering of edges will introduce a local ordering orientation. The orientation of the triangle will also induce an induced orientation. The local ordering orientation is used in the computing of local bases and the induced orientation is used when computing the differential operator locally. They may or may not be consisitent with the global orientation of edges.

In general, there will be an inconsistency of the following types of orientation and apporipate data structure should be constructured to record such inconsistency.

elem. The orientation of a triangle is either positive or negative. For the global ordering orientation, it is the sign of the signed area (output of simplexvolume).

[Dlambda,area,elemSign] = gradbasis(node,elem);

In the output of gradbasis, area is always positive and an additional array elemSign is used to record the sign of the signed area.

Dlambda(t,:,k) is the gradient of . Therefore the outward normal direction of the kth face can be obtained by -Dlambda(t,:,k) which is independent of the ordering and orientation.

edge. For 2-D triangulations, we shall always chose global ordering orientation, i.e., from the lower index to the bigger index.

The local ordering orientation is implicitly used when computing finite element basis in each element. For example, the edge element on edge [i j] in locEdge is defined as

Permutation of [i j] to [j i] will change the sign of the basis. Note that this is locally, i.e., element by element.

The global basis associated to an edge, however, depends only on the global orientation of this edge. We introduce elem2edgeSign(1:NT, 1:3) to record the inconsistency of a local ordering orientation and a global orientation.

For the consistent local ordering [2 3; 3 1; 1 2] and global ascend ordering orientation, the elem2edgeSign can be generated as follows:

elem2edgeSign = ones(NT,3,'int8');
totalEdge = uint32([elem(:,[2,3]); elem(:,[3,1]); elem(:,[1,2])]);
idx = (totalEdge(:,1)>totalEdge(:,2));
elem2edgeSign(idx) = -1;

There is one more inconsistency between the induced orientation and the global orientation of edges. If a triangle is positive orientated, the induced edge orientation should be given by the outwards (relative to a triangle) normal vector. This induced orientation may not be consistent with the global orientation of edges.

It depends on the ordering of elem and locEdge. When elem is positive ordered and locEdge is consistently ordered, it is.

For ascend ordering of elem and edge, we denote the direction as +1 if the direction of an edge is the same with the induced direction in a certain elem, and -1 otherwise. Then the consistency is given by

elem2edgeSign = [+1 -1 +1];

The second sign is -1 because the local edge in ascend ordering is [1 3] not [3 1].

The elem2edgeSign will be used when assembling differential operators. For example, when computing div operators on a positive orientated triangle, the edge should have outwards normal direction or equivalently the counter clockwise orientation.

We summarize the two popular ordering and orientation schemes below.

Positive Ordering and Orientation

The vertice of the eleme is sorted such that the area is always positive. i.e. the three vertices of the elem are ordered counter-clockwisely. Furthermore the first vertex is always the newest vertex of the triangle for the easy of local mesh refinement and coarsening.

The local edge is using opposite indexing and consistent ordering

locEdge = [2,3; 3,1; 1,2]

The ascend ordering is used for global edges, i.e., edge is sorted s.t.

edge(:,1) < edge(:,2)

The inconsistency of the orientation is recorded in|elem2edgeSign|.

Where to use: This is the default ordering and orientation scheme.

Ascend Ordering and Orientation

Ascend ordering. The vertices of elem is sorted such that

elem(t,1)<elem(t,2)<elem(t,3)

The local edge is also in the ascend ordering

locEdge = [2,3; 1,3; 1,2]

The ascend ordering is used for edges, i.e., edge is sorted s.t.

edge(:,1) < edge(:,2)

It is easy to see the benefit of ascend ordering: the ordering of local edges is consistent with the global ones and so is the corresponding orientation.

Orientation. We choose the ordering orientation.

elem: sign(det(v12,v13))

edge: from the node with smaller global index to bigger one

For edge, the orientation of the global ordering and the local ordering is consistent. But they are not consistent with the induced orientation inside one triangle. Such inconsistency is recorded in

elem2edgeSign = [+1 -1 +1]

Where to use: for H(curl) and H(div) elements and high order (cubic and above) H(grad) elements.

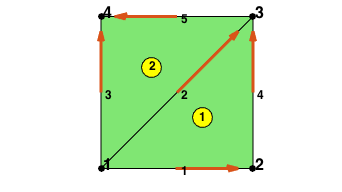

An Example

node = [0,0; 1,0; 1,1; 0,1];    % nodes
elem = [2,3,1; 4,1,3];          % elements

Poistive ordering and orientation

[elem2edge,edge,elem2edgeSign] = dofedge(elem);
% plot
set(gcf,'Units','normal');
set(gcf,'Position',[0,0.25,0.25,0.25]);
showmesh(node,elem);
findnode(node);
findelem(node,elem);
findedge(node,edge,'all','vec');

display(elem);
display(edge);
display(elem2edge);
display(elem2edgeSign);

elem =

     2     3     1
     4     1     3


edge =

           1           2
           1           3
           1           4
           2           3
           3           4


elem2edge =

           2           1           4
           2           5           3


elem2edgeSign =

    -1     1     1
     1     1    -1

Ascend Ordering and Orientation

bdFlag = setboundary(node,elem,'Dirichlet');
[elem,bdFlag] = sortelem(elem,bdFlag);
[elem2edge,edge,elem2edgeSign] = dofedge(elem);
display(elem);
display(edge);
display(elem2edge);
display(elem2edgeSign);
% elem2edgeSign = [1,-1,1];

elem =

     1     2     3
     1     3     4


edge =

           1           2
           1           3
           1           4
           2           3
           3           4


elem2edge =

           4           2           1
           5           3           2


elem2edgeSign =

     1    -1     1
     1    -1     1

Published with MATLAB® R2014b
